Bently Nevada 149744-02 is in stock, please contact us and we will provide you with the lowest price!

Sales manager : Cody

E-mail: sales2@xmjzjsgs.com

Whatsapp：+8615305023276

Mobile：+8615305023276

WeChat: 15305023276

Add：Building B/C Jiuzhou, Huli Dist, Xiamen, China.

Service：Professional Sales Provide 24hours/7 day Online Services

Warranty: 12 months

Fast Delivery: Delivery Within 2 Days

Terms of payment: Paypal、T/T 、 Western Union

Courier partners: DHL, UPS, TNT, FedEx and EMS

Manufacturer: Bently Nevada

Model Number: 149744

Part Number: 149744-02

Product Type: Trendmaster Dynamic Scanning Module (DSM)

Dimensions: 8.51 in x 5.24 in x 4.5 in

Weight: 0.5 kg (1.1 lbs)

Availability: In stock

Functional Description

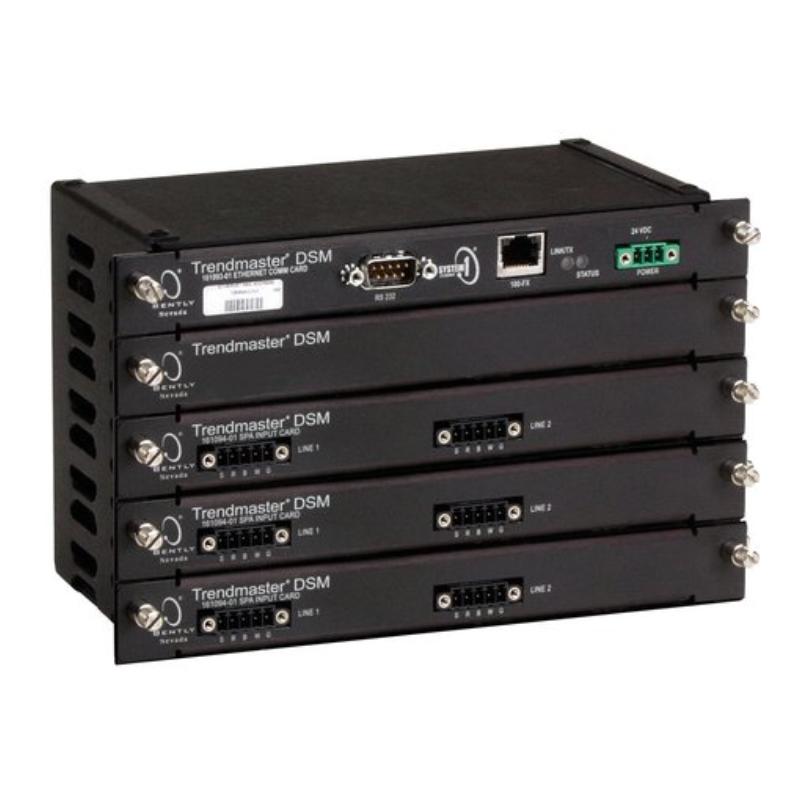

The 149744 Trendmaster Dynamic Scanning Module (DSM) is a compact rack-based data acquisition system that is fully integrated with System 1 software.  The DSM rack has a total of 5 card slots.  The first slot is dedicated for communications and will accept either the copper or fiber Ethernet card.  The second slot is reserved. The 3rd to 5th slots are TIM Input card or reserved.

The TIM input card connects to Bently Nevada TIM and proTIM modules.  Each TIM input card provides 2 TIM lines, and each TIM line supports up to 254 channels.  Input cards offer highresolution sampling with onboard real-time processing. Onboard processing is the key to the powerful and efficient features available with the DSM platform.  Because each input card can process data locally, the DSM can return postprocessed variables to the host computer and reduce the required network bandwidth.  If the host computer requires raw data, the DSM can also return waveforms and spectrums.

Modbus Communications Capability

The introduction of a Modbus digital interface now permits DSMs to communicate directly with process control and automation systems without the need for additional hardware. This capability provides a low-cost entry-level alternative to System 1 that uses the basic trending and alarming functionality that is integral to existing process control systems. All DSMs now include Modbus over TCP/IP capability and require only the DSM Modbus Exporter software to configure all the DSM inputs and define the Modbus interface. The DSM requires the Modbus Serial to Ethernet Bridge for RS232/485 Modbus communication. See the accessory section of this datasheet for the Modbus Exporter.
